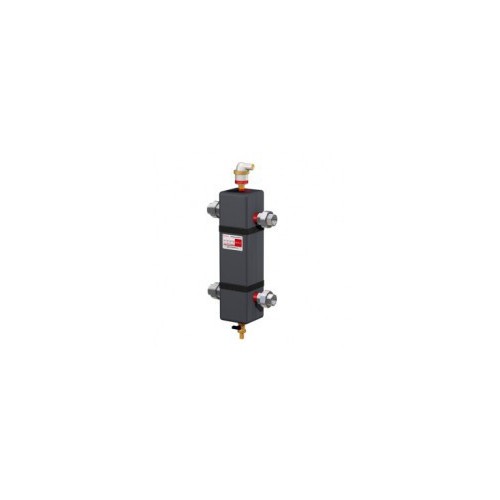

FLEXBALANCE ECOPLUS C

FLEXBALANCE ECOPLUS C

Application

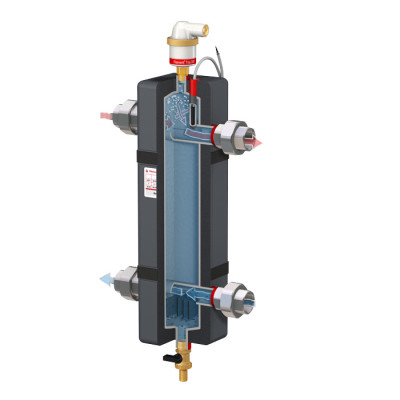

The Flexbalance EcoPlus C allows hydraulic separation between the primary and secondary circuits of commercial heating and cooling systems with air and dirt separation.



Scope of delivery

With threaded connection



Technical Data

Material: steel (S235JRG2): red coated RAL 3002

Min operation pressure: 0.2 bar

Max operation pressure: 10 bar

Min operation temperature -10°C

Max operation temperature 110°C

Equipped with a brass drain valve ½"

Max volume glicole:50%

Maximum recommended flow velocity:2,0 m/s primary circuit

Equipped with a Flexvent Top 3/8'' white

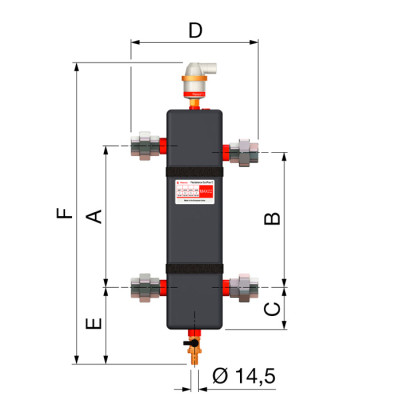

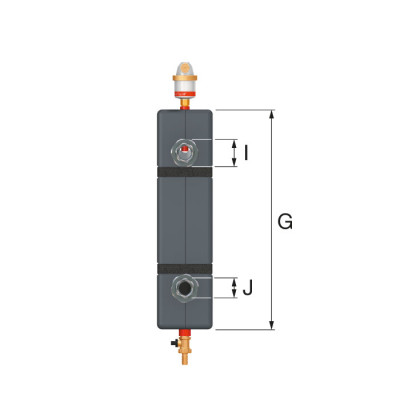

Type A [mm] B [mm] C [mm] D [mm] E [mm] F [mm] G [mm] I [mm] J [mm] Capacity [L] Max power [kW] Flow [L/s] Kv * [m3/h]
(ΔP = 1 bar)
FlexBalance EcoPlus C 1 290 276 85 262 160 620 455 55 38 1,4 60 0,7 26,6
FlexBalance EcoPlus C 1 ¼ 340 321 85 280 160 680 505 67 48 2,3 100 1,2 44
FlexBalance EcoPlus C 1 ½ 340 320 85 320 160 680 505 74 53 3,8 140 1,6 64
FlexBalance EcoPlus C 2 400 373 95 326 170 755 585 90 65 4,5 200 2,6 104





FLEXBALANCE ECOPLUS C
FLEXBALANCE ECOPLUS C
FLEXBALANCE ECOPLUS C
Code Name Weight Number of pieces
28377 1'' 6.29 1 Information request
28378 1''1/4 8.90 1 Information request
28379 1''1/2 10.95 1 Information request
28380 2'' 12.60 1 Information request
