Application
Element for mounting to floors, ceilings or walls, or for assembling crossbars. Types TKO 120 x 1500, 2000 and 3000 are not suitable for cantilever arrangements.
Installation
Depending on the situation, different options are recommended:
a) Fixation to building structure using 4 heavy duty anchors M12;
b) Frictional connection to steel beams (flange width 80 - 120 mm) with Assembly Set 5P M12 S;

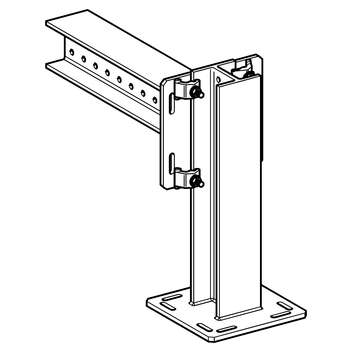

c) Interlocking connection to further Beam Brackets by means of Bracket Plates FV100/120.
The ø 13 mm holes following a 50 mm grid allow the combination with other products using M12 bolts.
Technical Data
| Dimensions of base plate [mm] | Slots in base plate for | ø of punched holes [mm] | Grid of holes [mm] |
|---|---|---|---|
| 220 x 220 x 12 | M12 | 13 | 50 |
Configuration: Base plate welded to IPB120.
Material: Steel, hot-dipped galvanised.
Approvals
CE mark, according to EN 1090.
| Code | Name | Weight | Number of pieces | ||
|---|---|---|---|---|---|
| 193150 | TKO 120 L= 350 mm | 13.29 | - | Information request | |
| 193167 | TKO 120 L= 600 mm | 19.90 | - | Information request | |
| 193174 | TKO 120 L= 800 mm | 25.19 | 1 | Information request | |
| 193181 | TKO 120 L=1000 mm | 30.48 | - | Information request | |
| 193198 | TKO 120 L=1500 mm | 43.70 | - | Information request | |
| 193204 | TKO 120 L=2000 mm | 56.93 | - | Information request | |
| 193105 | TKO 120 L=3000 mm | 83.38 | - | Information request |
