Application

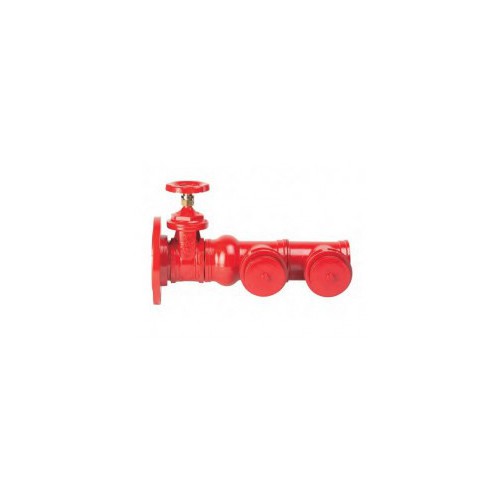

Brass motor pump connection EN 1982, painted red RAL 3000, with safety valve calibrated to
12 bar and integrated check valve.
Supplied with a DN 70 connection with a swivel joint compliant with UNI 804 for diameters 2", 2"½, 3" and 4", or two DN 70 connections with automatic shut-off valve for diameters 3" and 4". Polypropylene protective caps included, compliant with UNI10779.
Connection to the water mains with ISO 228 threaded or PN 16 flanged connection in accordance with UNI EN 1092.
For horizontal or vertical installation.
| L threaded [mm] | L flanged PN16 [mm] | H [mm] | P [mm] | |
| 2" x 1 UNI 70 | 240 | 270 | 190 | 205 |
| 2"½ x 1 UNI 70 | 245 | 285 | 220 | 205 |
| 3" X 1 UNI 70 | 260 | 300 | 240 | 215 |
| 3" X 2 UNI 70 | 405 | 445 | 240 | 220 |
| 4" X 1 UNI 70 | 280 | 340 | 280 | 245 |
| 4" X 2 UNI 70 | 420 | 480 | 280 | 250 |
| 4" X 3 UNI 70 | 560 | 620 | 280 | 250 |
| Code | Name | Weight | Number of pieces | ||
|---|---|---|---|---|---|
| 552680 | 2'' × 1 UNI 70 filettato | 12 | 1 | Information request | |
| 552685 | 2''½ × 1 UNI 70 filettato | 14 | 1 | Information request | |
| 552690 | 3'' × 1 UNI 70 filettato | 16 | 1 | Information request | |
| 552695 | 3'' × 2 UNI 70 filettato | 17 | 1 | Information request | |
| 552700 | 4'' × 1 UNI 70 filettato | 18 | 1 | Information request | |
| 552705 | 4'' × 2 UNI 70 filettato | 22 | 1 | Information request | |
| 552710 | 4'' × 3 UNI 70 filettato | 24 | 1 | Information request | |
| 552715 | 2'' × 1 UNI 70 flangiato | 13 | 1 | Information request | |
| 552720 | 2''½ × 1 UNI 70 flangiato | 14 | 1 | Information request | |
| 552725 | 3'' × 1 UNI 70 flangiato | 17 | 1 | Information request | |
| 552730 | 3'' × 2 UNI 70 flangiato | 19 | 1 | Information request | |
| 552735 | 4'' × 1 UNI 70 flangiato | 19 | 1 | Information request | |
| 552740 | 4'' × 2 UNI 70 flangiato | 23 | 1 | Information request | |
| 552745 | 4'' × 3 UNI 70 flangiato | 25 | 1 | Information request |
