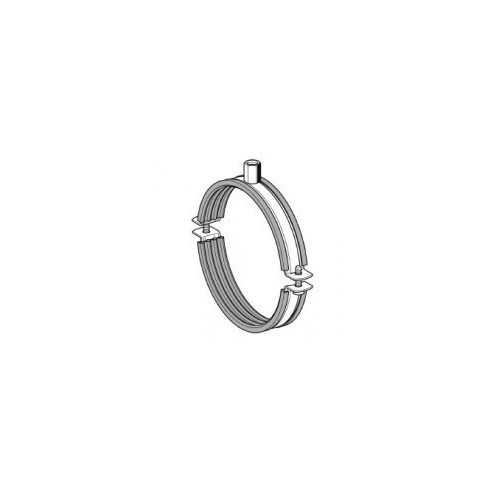

ERS PIPE CLAMPS

ERS PIPE CLAMPS

Download PDF
Information request

Application

Two-piece pipe clamp with dual threaded connection M8 and M10 for pipe fastening.
Suitable for fixing pipelines with acoustic insulation requirements in accordance with DIN 4109.



Technical Data

Clamping range [mm] Max. permissible load (tension) Torque [Nm] Material b x s [mm]
13–89 0.55 kN 1 20 x 1.0
39–66 0.80 kN 2 20 x 1.2
75–115 0.90 kN 2 20 x 1.5

Material: galvanized steel
Sound insulation insert: EPDM, black

Item code Size range (mm) Material Thread Weight (kg)
116766 11–15 20 x 1.0 M8/M10 0.04
116767 15–19 20 x 1.0 M8/M10 0.04
116768 20–24 20 x 1.0 M8/M10 0.04
116769 25–28 20 x 1.0 M8/M10 0.04
116771 32–35 20 x 1.0 M8/M10 0.06
116772 39–46 20 x 1.2 M8/M10 0.06
116773 48–53 20 x 1.2 M8/M10 0.08
116774 54–58 20 x 1.2 M8/M10 0.08
116775 59–66 20 x 1.2 M8/M10 0.08
116776 75–80 20 x 1.5 M8/M10 0.10
116777 87–92 20 x 1.5 M8/M10 0.12
116778 107–115 20 x 1.5 M8/M10 0.14
K117506 120–128 20 x 2.0 M8/M10 0.203
Code Name Weight Number of pieces
116766 ERS 11 - 15 0.04 200 Information request
116767 0.04 180 Information request
116768 0.04 170 Information request
116769 0.04 130 Information request
116771 0.06 120 Information request
116772 0.06 90 Information request
116773 0.08 70 Information request
116774 0.08 50 Information request
116775 0.08 50 Information request
116776 0.10 60 Information request
116777 0.12 50 Information request
116778 0.14 50 Information request
K117506 COLLARE ERS 120-128 MM 0.14 40 Information request
