Application

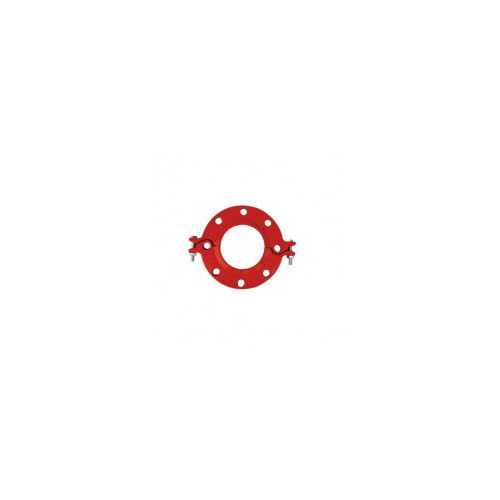

Connection to flange.
Technical data
Working pressure: 20 bar
Working temperature: from -34°C to +110°C with EPDM
Material:
- Body: spheroidal graphite cast iron according to ASTM A536 and ISO 1083
- Surface treatment: red painted RAL 3000.
- Gasket: EPDM type E according to ISO 6182, FM 1920 and UL 213.
Bolts: tempered bolts, round head with oval neck. Heavy series nuts in carbon steel according to ASTM A183.
| Type[DN] | Ø est. pipe[inch] | Ø est. pipe [mm] | A [mm] | B [mm] | C [mm] | Nr. holes | Ø holes[mm] |
| 50 | 2" | 60,3 | 220 | 22 | 165 | 4 | 18 |
| 65 | 2" 1/2 | 73,0 | 240 | 22 | 185 | 4 | 18 |
| 65 | 2" 1/2 | 76,1 | 240 | 22 | 185 | 4 | 18 |
| 80 | 3" | 88,9 | 250 | 22 | 200 | 8 | 18 |
| 100 | 4" | 114,3 | 278 | 22 | 220 | 8 | 18 |
| 125 | 5" | 139,7 | 318 | 23 | 250 | 8 | 18 |
| 150 | 6" | 168,3 | 345 | 23 | 285 | 8 | 22 |
| 200 | 8" | 219,1 | 410 | 28 | 340 | 12 | 22 |
| 250 | 10" | 273,0 | 500 | 29.5 | 405 | 12 | 22 |
| 300 | 12" | 323,9 | 550 | 29.5 | 460 | 12 | 26 |
Approvals
FM, UL, CE and drinking water certified
| Code | Name | Weight | Number of pieces | ||
|---|---|---|---|---|---|
| 7012060 | 60,3 mm 2'' | 1.40 | 18 | Information request | |
| 7012076 | 76,1 mm 2''½ | 2.10 | 12 | Information request | |
| 7012089 | 88,9 mm 3'' | 2.40 | 10 | Information request | |
| 7012114 | 114,3 mm 4'' | 3.50 | 10 | Information request | |
| 7012139 | 139,7 mm 5'' | 4.20 | 17 | Information request | |
| 7012168 | 168,3 mm 6'' | 4.50 | 7 | Information request | |
| 7012219 | 219,1 mm 8'' | 7.50 | 4 | Information request | |
| 7012273 | 273,0 mm 10'' | 11 | 5 | Information request | |
| 7012324 | 323,9 mm 12" | 12 | - | Information request |
