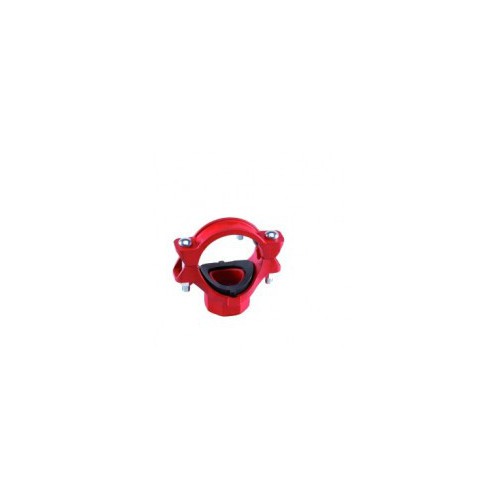

THREADED BRACKET DERIVATION 72P

THREADED BRACKET DERIVATION 72P

Download PDF
Information request

Application

Derivation with threaded connection.

Technical Data

BSPT threading.
Working pressure: 20 bar.
Working temperature: -34°C to +110°C with EPDM gaskets.
Construction features
Body: ductile iron in accordance with ASTM A536 and ISO 1083.
Surface treatment: electrophoretic coating, color red RAL 3000.
Gasket: EPDM.
Bolts: hardened round-head bolts with oval collar.
Heavy-duty nuts in carbon steel in accordance with ASTM A183.

Type Bolts Ø [mm] L [mm] K [mm] H [mm] Ø Holes [mm]
2" x 1" 1/4 2-M10x55 74 118 56 72 46
2" x 1" 1/2 2-M10x55 74 110 56 72 46
2" 1/2 x 1" 1/4 2-M10x55 96 126 65 83 46
2" 1/2 x 1" 1/2 2-M10x55 102 144 70 83 54
3" x 1/2" 2-M10x55 106 138 73 79 38
3" x 3/4" 2-M10x55 106 138 73 79 38
3" x 1" 2-M10x55 106 138 73 79 38
3" x 1" 1/4 2-M10x55 106 138 73 83 46
3" x 1" 1/2 2-M10x55 106 138 73 94 54
3" x 2" 2-M10x55 106 138 73 100 64
4" x 1" 2-M12x65 134 180 85 78 38
4" x 1" 1/4 2-M12x65 134 180 85 85 46
4" x 1" 1/2 2-M12x65 134 180 85 94 54
4" x 2" 2-M12x65 134 180 90 98 64
4" x 2" 1/2 2-M12x65 134 180 93 121 79
5" x 1" 2-M12x75 168 220 107 77 38
5" x 1" 1/4 2-M12x75 168 220 107 83 46
5" x 1" 1/2 2-M12x75 168 220 107 92 54
5" x 2" 2-M12x75 168 220 107 97 64
5" x 2" 1/2 2-M12x75 168 220 107 112 79
5" x 3" 2-M12x75 168 220 107 122 92
6" x 1" 2-M12x75 198 247 120 77 38
6" x 1" 1/4 2-M12x75 198 247 120 82 46
6" x 1" 1/2 2-M12x75 198 247 120 92 54
6" x 2" 2-M12x75 198 247 120 98 64
6" x 2" 1/2 2-M12x75 198 247 120 121 79
6" x 3" 2-M12x75 198 247 120 134 92



Approvals

FM, UL, CE and drinking water certified



Code Name Weight Number of pieces
72P060042 60,3× 42,4 mm 2''×1''¼ 1.21 34 Information request
72P060048 60,3× 48,3 mm 2''×1''½ 1.32 30 Information request
72P076042 76,1× 42,4 mm 2''½×1''¼ 1.31 24 Information request
72P076048 76,1Ã? 48,3 mm 1.42 24 Information request
72P089021 88,9× 21,3 mm 3''×½'' 1.20 28 Information request
72P089027 88,9× 27,9 mm 3''×¾'' 1.20 26 Information request
72P089034 88,9× 33,7 mm 3''×1'' 1.30 26 Information request
72P089042 88,9× 42,4 mm 3''×1''¼ 0.84 24 Information request
72P089048 88,9× 48,3 mm 3''×1''½ 1.54 24 Information request
72P089060 88,9× 60,3 mm 3''×2'' 1.65 20 Information request
72P114021 114,3× 21,3 mm 4''×½'' 1.39 20 Information request
72P114027 114,3× 33,7 mm 4''×1'' 1.39 20 Information request
72P114034 114,3× 33,7 mm 4''×1'' 1.39 20 Information request
72P114042 114,3× 42,4 mm 4''×1''¼ 1.45 20 Information request
72P114048 114,3× 48,3 mm 4''×1''½ 1.25 16 Information request
72P114060 114,3× 60,3 mm 4''×2'' 1.33 18 Information request
72P114076 114,3Ã? 76,1 mm 2.50 16 Information request
720F139021 139,7× 21,3 mm 5''×½'' 1.65 12 Information request
72P139034 139,7Ã? 33,7 mm 1.70 12 Information request
72P139042 139,7Ã? 42,4 mm 1.81 18 Information request
72P139048 139,7× 48,3 mm 5''×1 ½'' 1.93 16 Information request
72P139060 139,7× 60,3 mm 5''×2'' 2.80 16 Information request
72P139076 139,7Ã? 76,1 mm 3.04 16 Information request
72P139089 139,7Ã? 88,9 mm 3.20 14 Information request
720F168021 168,3× 21,3 mm 6''×½'' 1.94 10 Information request
720F168027 168,3× 27,9 mm 6''×¾'' 1.94 10 Information request
72P168034 168,3Ã? 33,7 mm 1.94 10 Information request
720F168042 168,3× 42,4 mm 6''×1 ¼'' 1.97 10 Information request
720F168048 168,3× 48,3 mm 6''×1 ½'' 2.19 10 Information request
72P168060 168,3× 60,3 mm 6''×2'' 3.28 10 Information request
72P168076 168,3Ã? 76,1 mm 3.60 10 Information request
720F168089 168,3× 88,9 mm 6''×3'' 3.80 10 Information request
